YAMAHA NEW SCORPIO Z 2013 SPECIFICATIONS

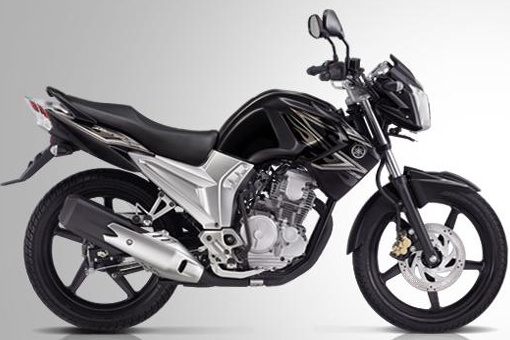

Specifications Yamaha New Scorpio ZMotor sport touring with capacity of 225cc output Yamaha's got a  change Body design modifications, thus making New Yamaha Scorpio-Z is more muscular and ferocious.


Compared with previous models New Yamaha Scorpio Z really give an aura different and more manly. Besides the engine remains the same, chassis of this bike was still maintaining his old edition. Similarly to measure and rim design 18-inch and rear tromol and front disc brakes.


For engine New Yamaha New Scorpio-Z is still relying on a 4 stroke SOHC with a single cylinder, motor with capacity 225cc is capable of removing the maximum power 13,4 Kw/8000rpm and maximum torque generated 17.5 / 6500rpm.


Yamaha provides a choice of four colors for New Yamaha Scorpio-Z latest, namely Red, Black, White and Blue. Here are the full specifications New Yamaha Scorpio Z. Read also Specifications Yamaha FZ-09 2014


Specifications New Yamaha Scorpio Z :

Engine :
Engine type: 4 Step, 2 Valve SOHC, Air Cooled
Number / Position Cylinders: Single Cylinder / Vertical
Cylinder Volume: 223 cc
Bore x Stroke: 70.0 x 58.0 mm
Compression Ratio: 9.5: 1
Maximum power: 13.4 kW / 8000 rpm
Maximum Torque: 17.5 Nm / 6500 rpm
Starter System: Electric Starter and Kick Starter
Lubrication System: Wet
Engine Oil Capacity: Total: 1.4 Liter / Replacement Periodical: 1.2 Liter
Fuel system: Carburetor BS30 x 1
Clutch Type: Wet, Manual Clutch, Multiplat
Transmission type: Return, 5 Speed
Transmission Operation Pattern: 1 - N - 2 - 3 - 4 - 5

Chassis:
Frame Type: Double Cradle
Suspension Front: Telescopic
Rear Suspension: Swing Arm, Suspension Monocross
Tires Front: 80/100-18M/C 47P
Rear Tires: 56P 100/90-18M/C
Brakes Front: Disc
Rear Brakes: Tromol

Dimensions:
P x L x H: 2030 mm x 750 mm x 1095 mm
Axis Wheels distance: 1295 mm
Distance Lowest to Land: 165 mm
Seat Height: 770 mm
Fill Weight: 142 kg
Fuel Tank Capacity: Total: 13 Liter, Reserves: 2.5 Liter


Electrical :
Ignition system: CDI
Battery: GM7B-4B, YB7-B (12V 7Ah)
Busi: D8EA -9 (NGK)
