New Yamaha FZ-S Review, Feature and Specifications - New Yamaha FZ-S highlights the style quotient and has more flesh to flaunt with purely European international design like new colours & graphics, aerodynamic chiseled windshield, stylish & sporty carbon pattern meter console, and more aggressive looking headlight. The New Yamaha FZ-S is for stylish and attention seeking Macho man.
Yamaha FZ-S scores high in looks not only in its segment but beyond and is designed to satiate the need for style and fashion by riders. Etched with style and geared to today’s fashion conscious customers, FZ-S is a fusion of machismo and fashion.
Yamaha FZ-S overflows with dynamism and originality. The running performance brims with thrust that overpowers all others with its unprecedented torque. Dubbed as “Lord of the Streets,” FZ-S is designed and engineered with the potential for active and even aggressive enjoyment of around-town street riding and styling that brings pride of ownership and makes any rider look like they own the road.
With the Triple Macho concept projecting the Muscular silhouette, muscular body parts and muscular chassis, FZ -S is an object which reflects visual expression of performance on the streets.
Feature Yamaha FZ-S
Powerful 153 cc Engine
A newly designed 153cc air-cooled, 4-stroke, SOHC, single-cylinder, 2-valve engine with a max.output of 14 Ps and a max. torque of 13.6 N.m., characterized by its breathtaking pick up and featuring an electric and kick starter.
Powerful Monocross Suspension
A Monocross rear suspension unit provides 120 mm of wheel travel, while optimized oil and damping valve specs help ensure agile running performance and handling. It inhibits bottoming while riding with a tandem passenger as well as providing a very comfortable ride.
Midship Muffler
To give a sense of volume to the machine, an external diameter of 35mm is adopted in a two-layer type exhaust to minimize the effect of heat on the pipe. The layout features a large-volume primary character on the underside of the crankcase. The muffler is an irregular shaped tapered type mid-ship muffler.
Widest Radial Tyre
“ India’s first “140/60-R17” size radial tyre (rear)"
The rear tyre is India’s first radial tyre with a 60% aspect ratio. Both the front and rear tyres on this model are tubeless type that are less susceptible to sudden flattening should the tyre be punctured.
New stylish graphic
Cool and exciting graphics make the bike look super-stylish. The graphics give the bike a contemporary and a sporty look. The new look of the bike will surely make heads turn.
Fuel tank
“12-liter fuel tank with uniquely styled plastic resin cover"
The steel fuel tank with a plastic resin outer cover takes advantage of the freedom of shaping that plastic provides, giving the tank cover a powerful shape with modulations suggestive of the muscular body of an athlete.
Trendy Meter Console
The meters on the FZS are installed in a Full Liquid Crystal Display. The speedometer, tachometer, trip meter, fuel gauge and other indicators are set in optimum position to keep the field of vision clear. Also, the engine starting signal is an example of the spirit of innovation.
Longer and Wider Fender
The bike sports a fairly wide rear fender that guards the tyre from the mud and water splashes. It minimizes the effect of the mud/splash and gives maximum protection.
Longer and Wider Pillion Seat With New Grab Bar
More seat space provides a more comfortable riding experience. The seat is long, firm and especially designed for the pillion rider. The grab bar not only acts as a backrest but is something the pillion rider can hold on to if the road is bumpy.
New Yamaha FZ-S Equipped with engine capacity of 153 cc Air-cooled, 4-stroke, SOHC, 2-Valve with carburettor fuel system. The engine of Yamaha FZ-S is capable of producing 14PS at 7,500 rpm with peak torque of 13.6 Nm at 6,000 rpm.
Color options New Yamaha FZ-S :
- Pouncing Black

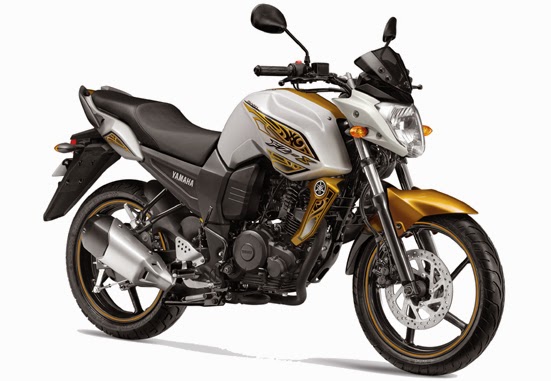

- Hawk-eye Gold
Specifications Yamaha FZ-S
Engine
Engine type : Air-cooled, 4-stroke, SOHC, 2-Valve
Displacement : 153.0cc
Bore & Stroke : 58.0 × 57.9mm
Compression ratio : 9.5:1
Maximum output : 14PS @ 7,500 rpm
Maximum torque : 13.6 Nm @ 6,000 rpm
Starting method : Electric & Kick
Lubrication type : Wet Sump
Fuel Supply : Carburetor
Clutch type : Wet, multiple-disc
Primary/secondary reduction ratio : 3.409 / 2.857
Transmission type : Constant mesh 5-speed
Gear ratio : 1st=2.714 2nd=1.789 3rd=1.318 4th=1.045 5th=0.875
Cylinder layout : Forward-inclined Single Cylinder
Battery : 12 V, 5.0 Ah
Chassis
Frame type : Diamond
Suspension (front/rear) : Telescopic/ Monocross
Wheelbase 1,334mm
Brake type(front/rear) : Disc/Drum
Tire size (front/rear) : 100/80-17 / 140/60-R17
Headlight : 12 V, 35/35W
Caster / trail : 25 degree/ 101 mm
Dimensions
Overall Length × Width × Height : 2075 mm × 770 mm × 1,090 mm
Seat height : 790 mm
Wheelbase : 1,334 mm
Minimum ground clearance : 160 mm
Kerb weight : 135 kg
Fuel tank volume : 12 liters
